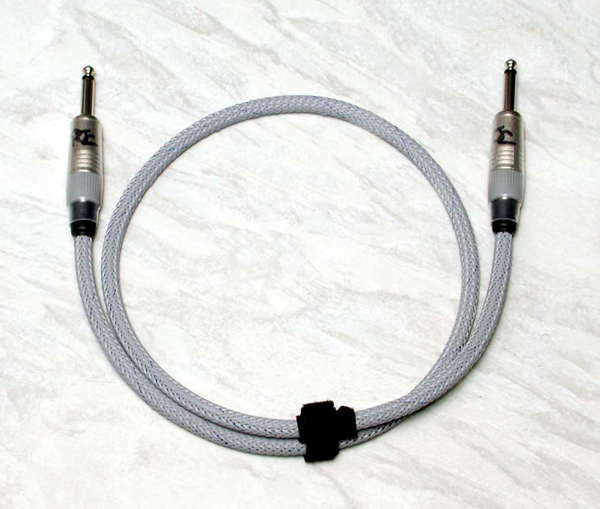

Heavy Duty Speaker Cables
Following on from the universal approval of our HD
Guitar/Bass Cables we are proud to introduce our Heavy Duty Speaker cables.
Using Neutric 1/4 inch jacks, all personally signed and sleeved by Pete Cornish
after successfully completing our rigorous tests, these cables are specially
designed to be the perfect interface between your Amp and Loudspeaker
Cabinet, and to transfer the signal without losses or tonal change.
The cable used is Ultra Pure Oxygen Free Copper of very generous dimensions:
each conductor comprises 84 strands of 0.15mm cores with a total area of is 1.5
Sq.mm. The insulator is a specially designed PVC Polymer which maximizes the
flexibility, heat and stress resistance to ensure long life after many years of
professional use.
The Cable Jacket is constructed from a neoprene-heavy, special PVC Composite
which has an almost rubber-like quality and is high pressure extruded over the
insulated and twisted conductors. The "coil-ability" of these cables is
excellent even at low temperatures.
We over-sleeve the cable with a woven gray Polyamide Braid that has excellent
abrasion resistance and allows immediate identification of the HD SPK
Cables.
The tests carried out on every cable consist of :
1) Conductor resistance, Tip to Tip, must be less than 0.2 Ohms and we regularly
achieve less that 0.1 Ohm in practice.
2) Conductor resistance, Sleeve to Sleeve, must be less than 0.2 Ohms and we
regularly achieve less that 0.1 Ohm in practice.
3) Insulation resistance between conductors is measured at an applied voltage of
500VDC and must exceed 200 MegOhms.
We can supply HD SPK Cables of any length but would recommend that for lengths
over 3m (10ft) that our EXTRA HEAVY DUTY SPK Cables would provide even lower
losses particularly for lengths approaching 15m
(50ft)
For more info: HEAVY DUTY SPEAKER CABLE PRICING
